Home > 12V5A open frame lead acid battery charger

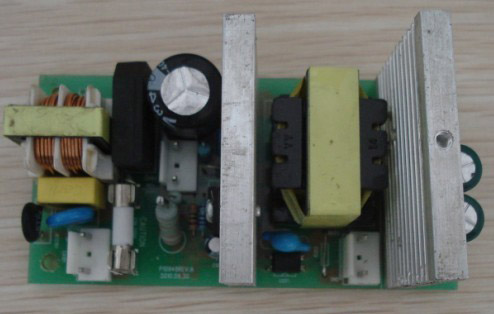

12V5A open frame lead acid battery charger
Product Details:
Place of Origin:
Certification:
ce
Model Number:
MP-OPBC-12-5
Payment & Shipping Terms:
Minimum Order Quantity:
1000
Price:
negoticate
Packaging Details:
PE bag
Delivery Time:
15days
Payment Terms:
TT
Supply Ability:
100000pcs/month
 Request A Quote
Product Description
12V 5A open frame  LEAD ACID BATTERY CHARGER SPECIFICATION
1．Products
   Product application 12V lead-acid power battery, solar battery, electric cars and other battery charge
2．Applications
    Products to the 12V lead-acid batteries, battery capacity is 25-50AH efficiently constant pressure constant flow can charging management since
3．Performance characteristics
   a. Adopt constant pressure automatically charges
   b. Full of electricity automatically turn off the charger
4．The main parameters
Model 70VA
INPUT Voltage（V）  180-264VAC or 100AC-132VAC   (200VDC-380VDC)
Frequency:(HZ)  50Hz   60Hz  +/-2Hz　
ON LOAD POWER(W) 5W
OUTPUT Voltage（V） 13.8V+/-0.3V (NO load)
Charger Current（A) 5A±1A (at voltage10.5V)
Max Power Efficiency 80%
Surge current   50A
Protection circuit:  reverse polarity protection, low battery voltage protection,Over current protection
Max continuous power 70W
EMC CE
Noise <55dB
Relative Humidity 0～90%
Ambient temperature ,-10℃--+40℃
Altitude Below 1,000 meters
PCBA size 100*50*50MM
weight
 		 0.4KG
PCB fixed size  90*40MM
ight�5t��� �E� er Efficiency 80% Surge current   50A Protection circuit:  reverse polarity protection, low battery voltage protection,Over current protection  Max continuous power 70W EMC CE Noise <55dB Relative Humidity 0～90% Ambient temperature ,-10℃--+40℃ Altitude Below 1,000 meters PCBA size 100*50*50MM weight

0.4KG PCB fixed size  90*40MM
